C11 - Wall Flange

Name: C11 - Wall Flange
Brand: My Store
SKU: C11G32
Price: 524.0 INR
Availability: InStock

Rs. 524.00

Sale Sold out

Shipping calculated at checkout.

Type C11G32 C11G40

Product variants

Quantity

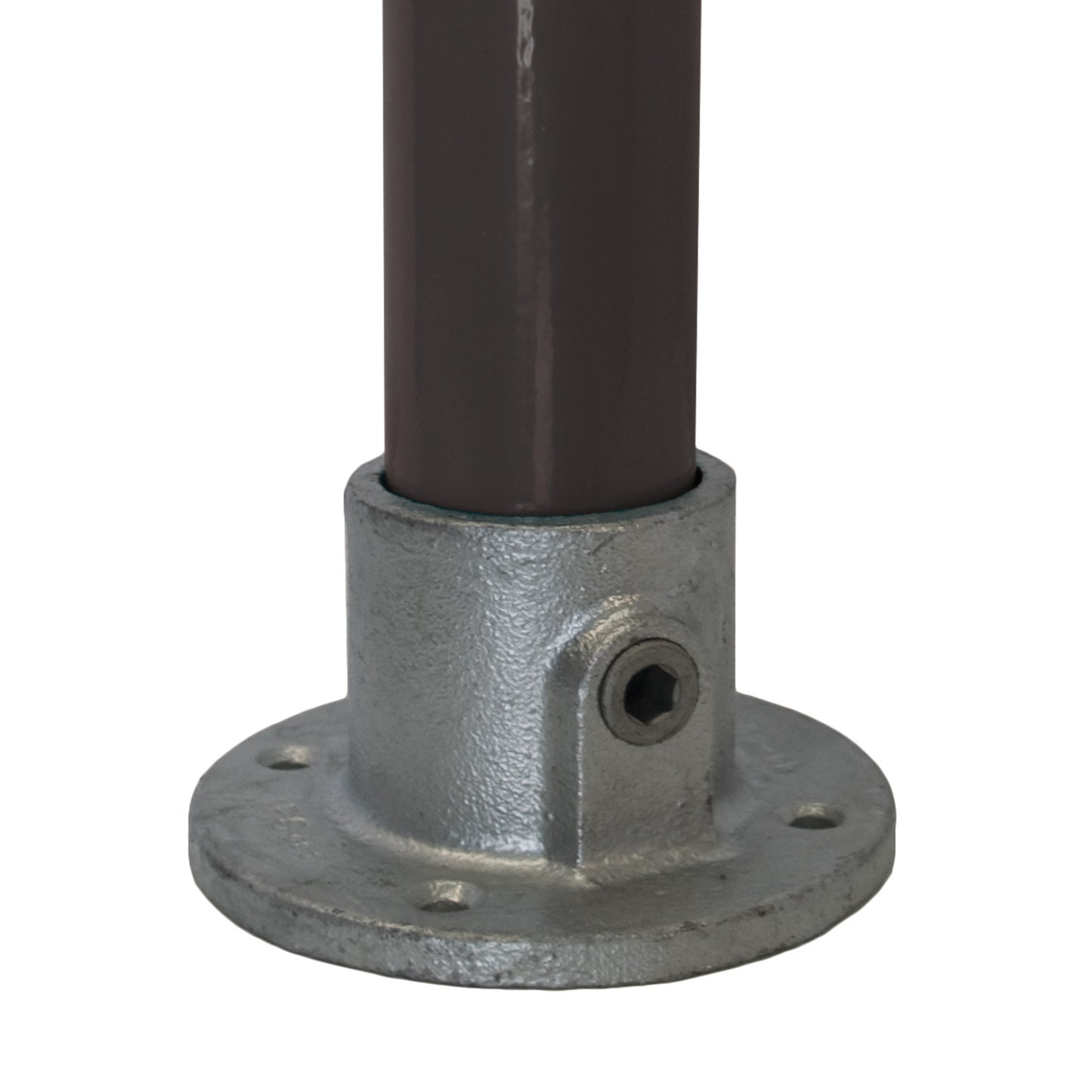

The Wall Flange is designed to provide a positional wall or base fixing. It is not recommended to use this fitting as a structural railing base.

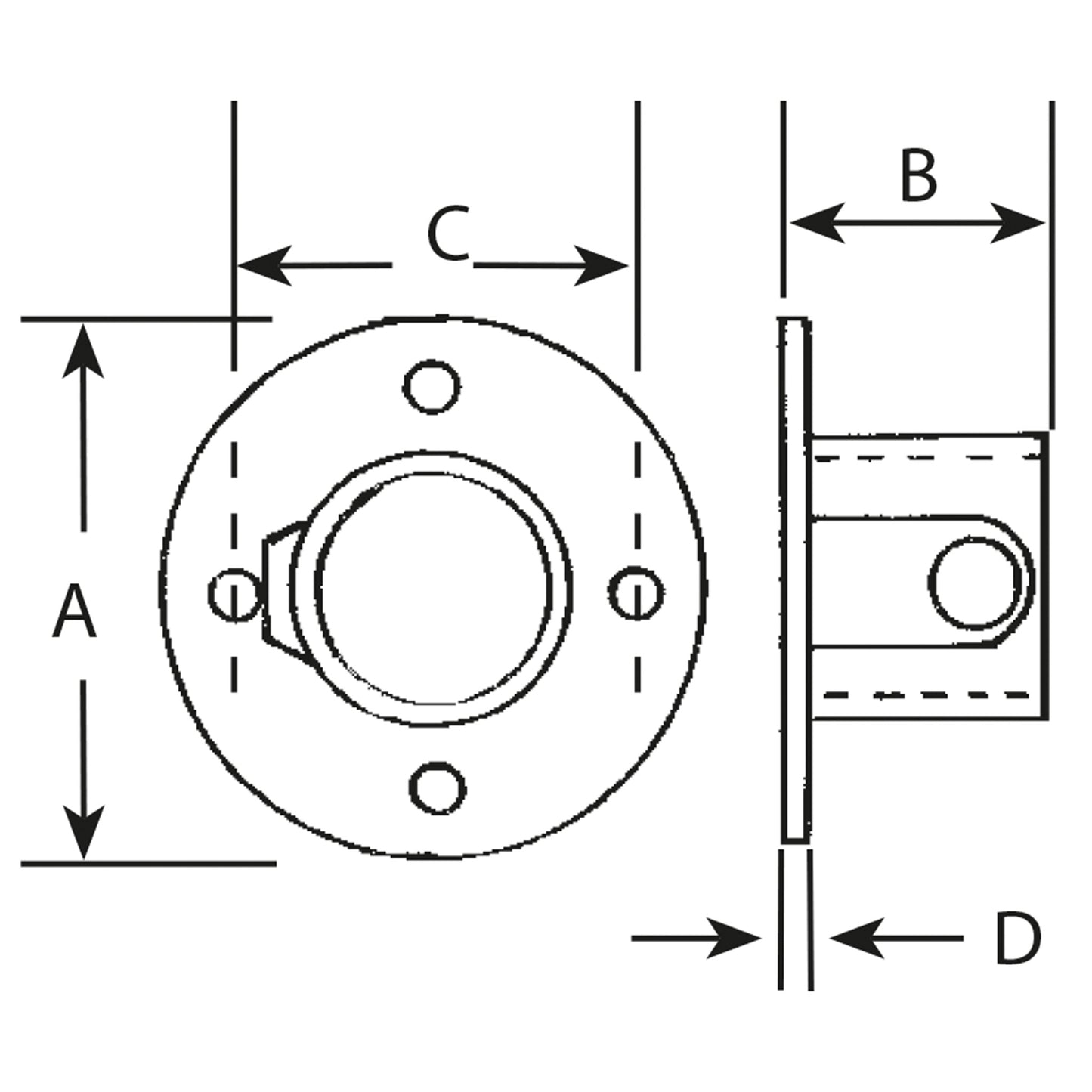

TYPE	TUBE SIZE	A	B	C	D	Ø	KG
C11G20	26.9	86	42	57	4	9	0.35
C11G25	33.7	89	45	64	6	9	0.39
C11G32	42.4	102	50	76	6	9	0.50
C11G40	48.3	114	57	89	6	9	0.65
C11G50	60.3	127	64	95	6	9	1.10
