C15 - Side Palm Fixing
C15 - Side Palm Fixing
Regular price
Rs. 826.00
Regular price
Sale price
Rs. 826.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

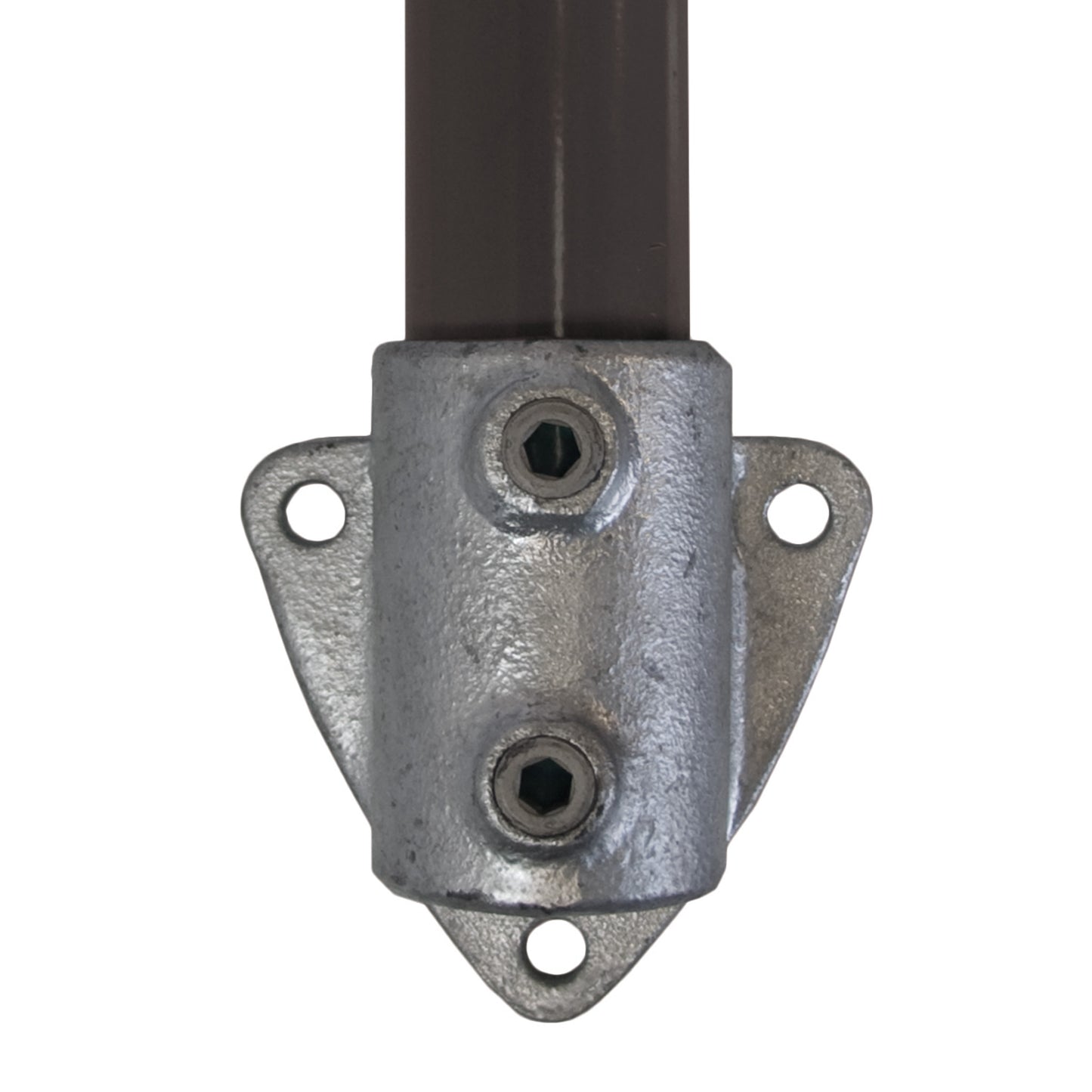

The Side Support is designed to provide a base for railings and other structures that need a side mounted fixing. It is recommended that this fitting be used in accordance with Kee Klamp maximum post centre dimensions, see table 3 on our Technical Page.

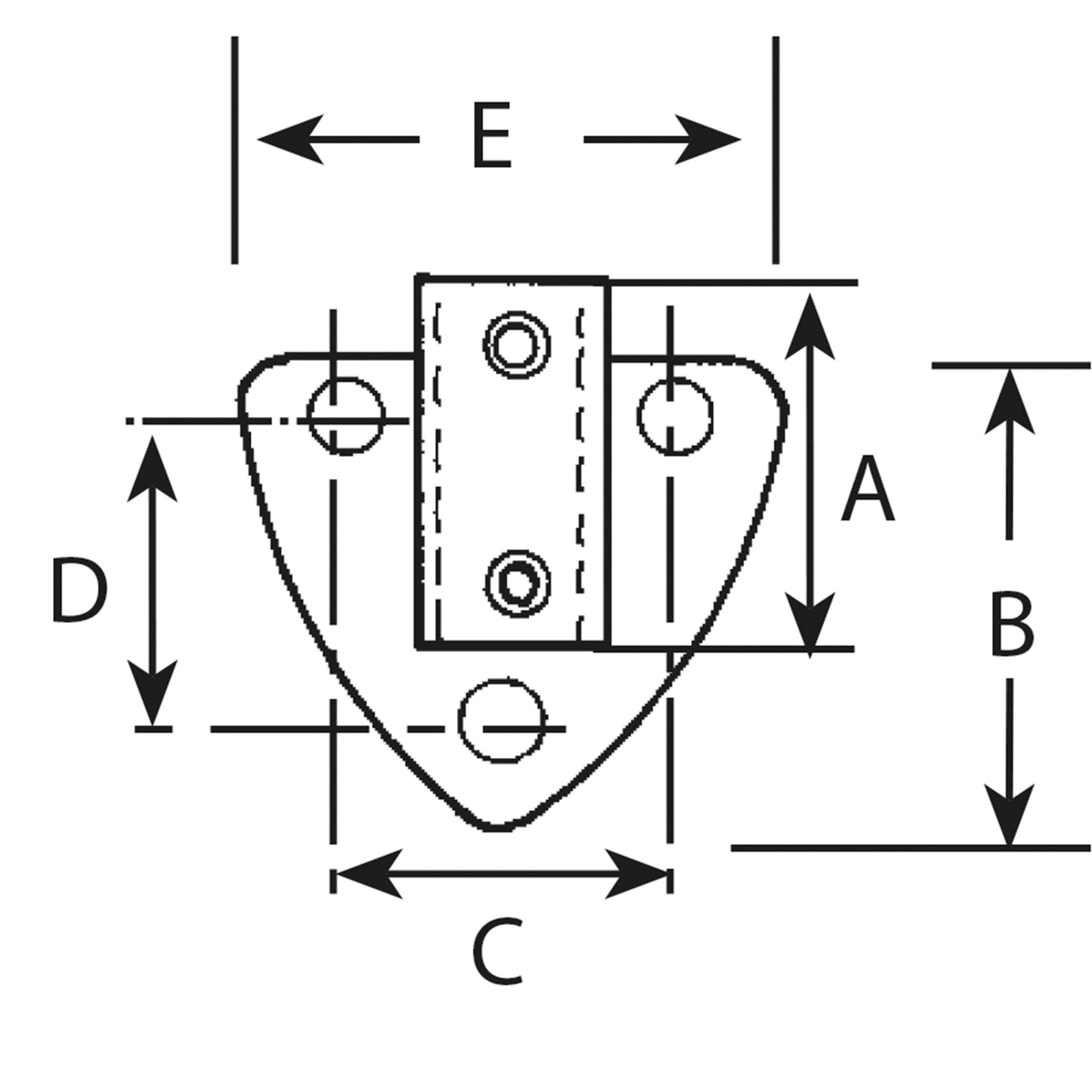

TYPE | TUBE SIZE | A | B |  C | D |  E | Ø | KG |
---|---|---|---|---|---|---|---|---|
C15G25 | 33.7 | 76 | 89 | 71 | 63 | 97 | 11 | 0.63 |
C15G32 | 42.4 | 84 | 98 | 82 | 72 | 108 | 11 | 0.80 |
C15G40 | 48.3 | 92 | 104 | 86 | 78 | 112 | 11 | 0.84 |
