C16 - Handrail Bracket

Name: C16 - Handrail Bracket
Brand: My Store
SKU: C16G32
Price: 425.0 INR
Availability: OutOfStock

Rs. 543.00

Sale Sold out

Shipping calculated at checkout.

Type C16G20 C16G32 C16G40

Product variants

Quantity

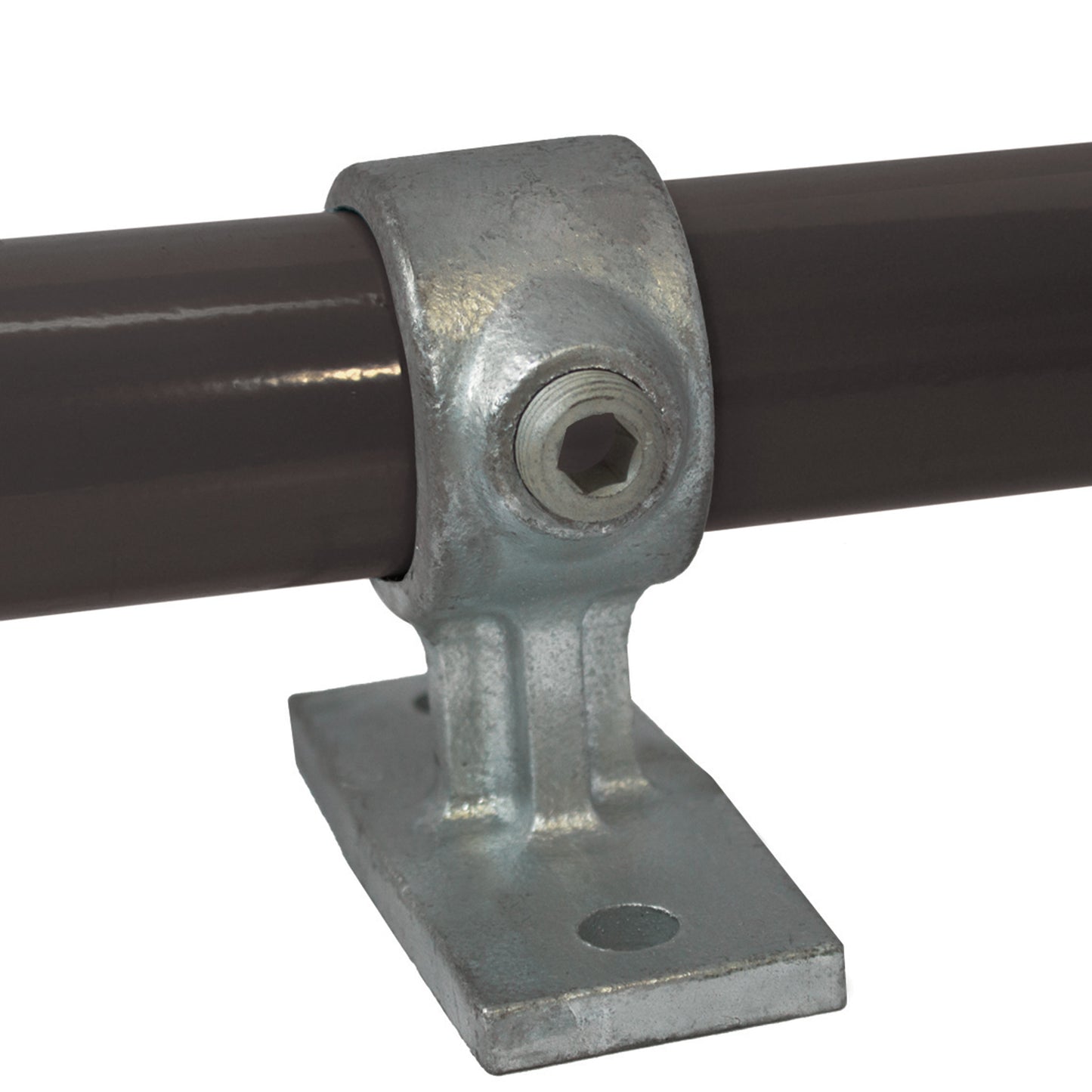

The Handrail Bracket is designed to secure handrail tube to a wall. It can also be used on top of walls as a fixing for a low rail.

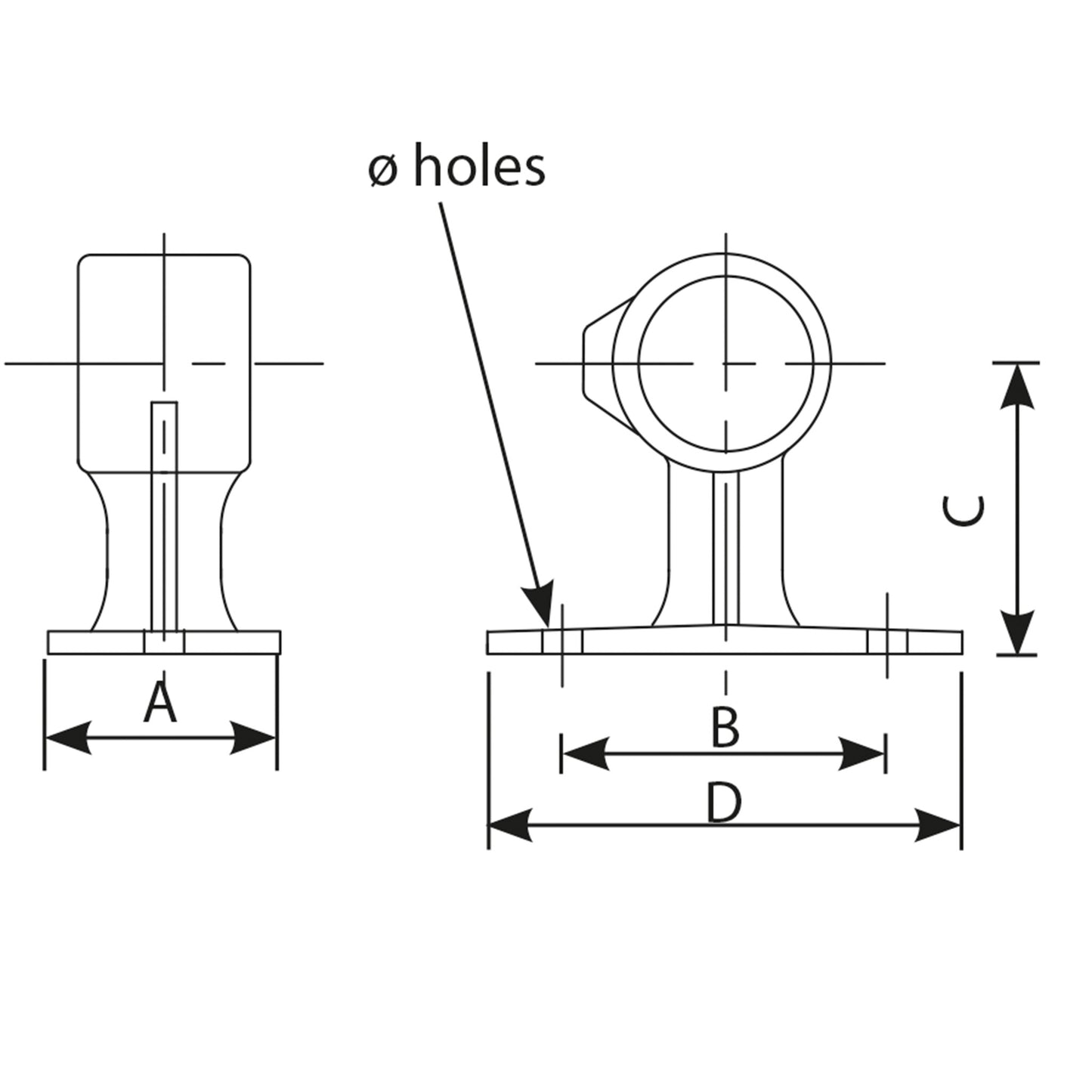

TYPE	TUBE SIZE	A	B	C	D	Ø	KG
C16G20	26.9	46	57	54	76	8	0.36
C16G25	33.7	44	63	57	82	11	0.46
C16G32	42.4	44	76	63	102	11	0.57
C16G40	48.3	48	85	67	108	11	0.62
