C59A - Angle Base Flange (30° to 45°)

Name: C59A - Angle Base Flange (30° to 45°)
Brand: My Store
SKU: C59AG32
Price: 1218.0 INR
Availability: InStock

Rs. 1,218.00

Sale Sold out

Shipping calculated at checkout.

Type C59AG32 C59AG40

Product variants

Quantity

Similar to a type C59, it is used to set the upright at an angle between 30° & 45°. This fitting should only be subjected to light loads which cannot be positioned at 90° to the applied load. For greater load use a type C12.

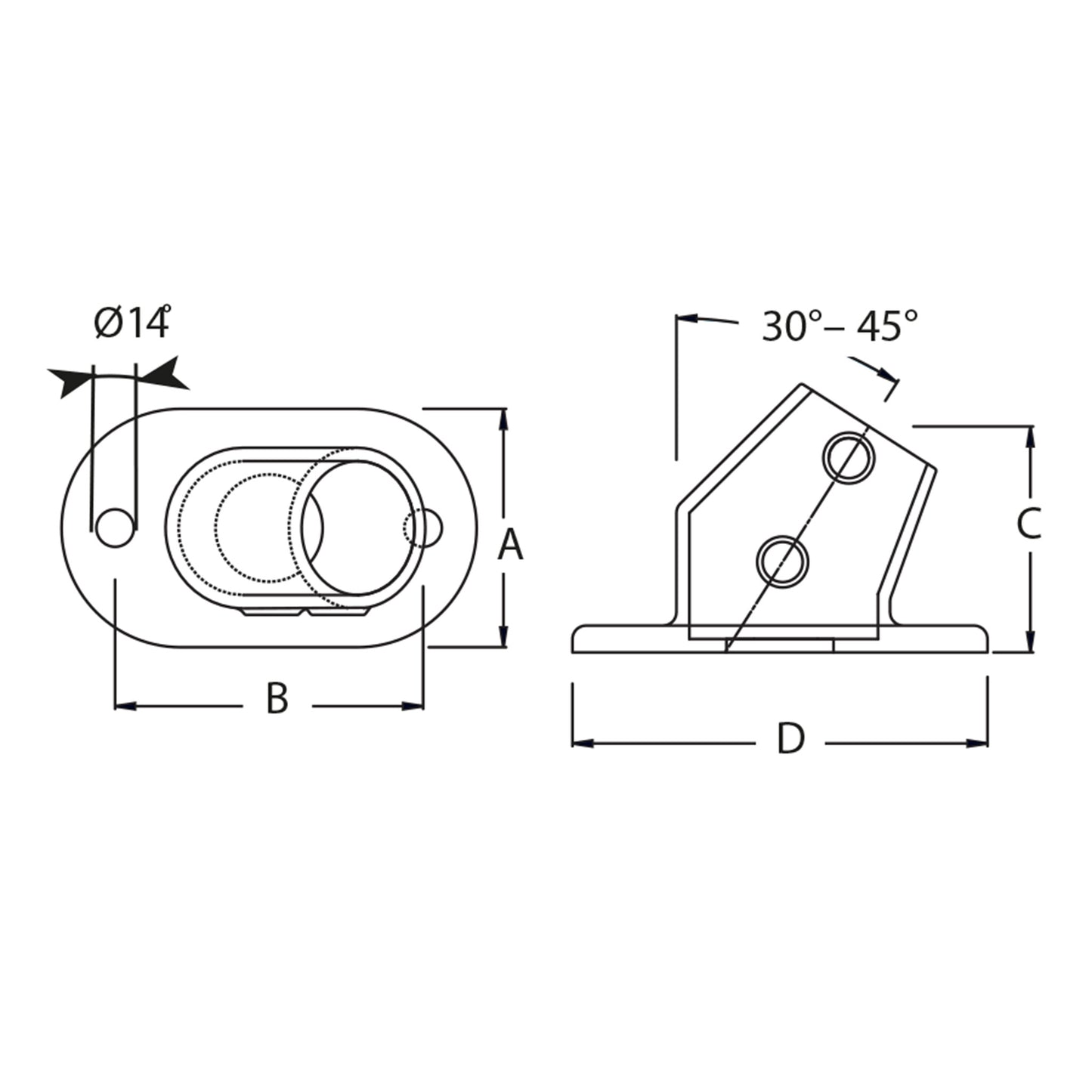

TYPE	TUBE SIZE	A	B	C	D	Ø	KG
C59AG32	42.4	76	106	81	138	14	1.17
C59AG40	48.3	89	115	85	155	14	1.53
