C40 - 90° Crossover

C40 - 90° Crossover

Rs. 477.00
Rs. 477.00
Sale Sold out
Shipping calculated at checkout.
Type

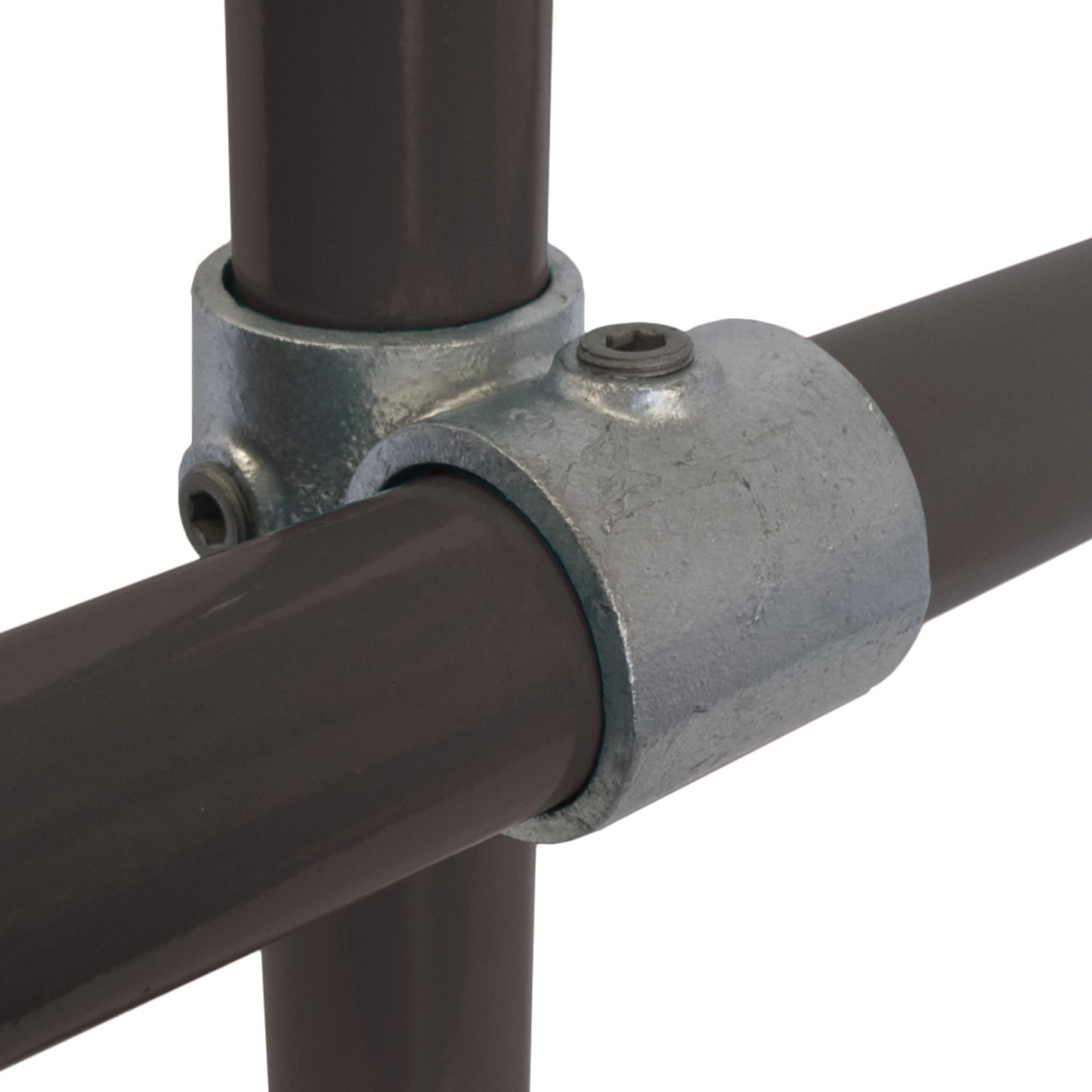

The 90° Crossover connects two rails at 90° to each other and is often used for the handrailing when continuous standard lengths of tube are used. Please note that tube joints should use the C00 or C01 type fitting, and not the C40 type fitting.

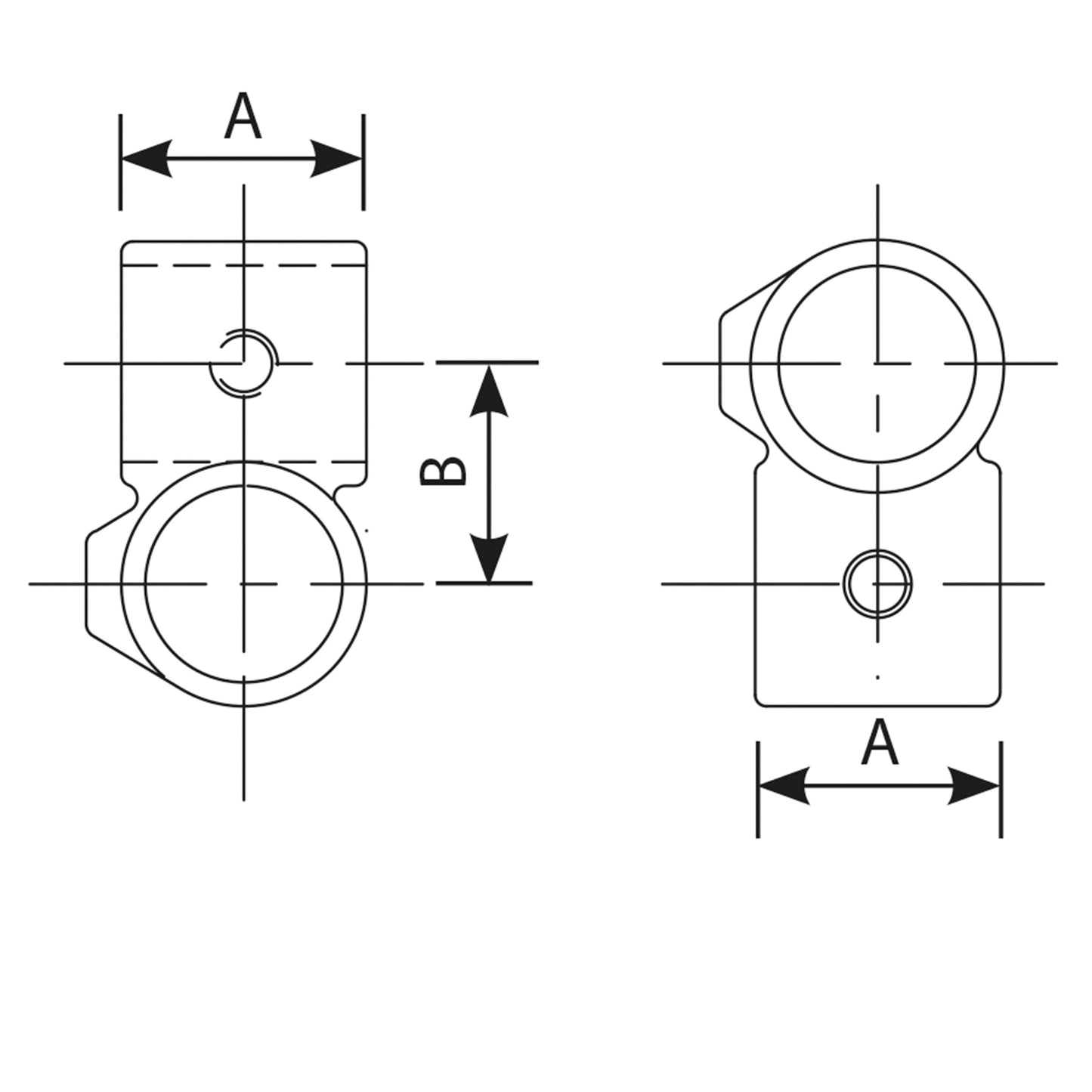

TYPE TUBE SIZE A B KG
C40G20 26.9 36 35 0.22
C40G25 33.7 40 40 0.34
C40G32 42.4 49 49 0.41
C40G40 48.3 55 55 0.57
C40G50 60.3 61 64 0.82
